Preparing your hysteresis data for HSOM-based analysis

This notebook illustrate the data preparation workflow required to use HSOM for both training SOMs or analysing data with a pretrained SOM (we’ll use the General T-Q SOM). The workflow will be illustrated using a time series of discharge and turbidity for which a set of hydrologic events where previously delineated.

Beyond the HySOM dependencies (numpy, matplotlib and numba), Pandas is required to run this notebook, so make sure you have it installed.

from hysom.pretrainedSOM import get_generalTQSOM
from hysom.utils import datasets
from hysom.utils.plots import heatmap_frequency

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np

Load time series and hydrologic events data

First, let’s load a sample dataset included in the HySOM package. The dataset contains two main pices of data:

1. 15-min discharge and turbidity data collected by the USGS USGS-01191000 between 06/2016 and 12/2023.

2. A list of hydrologic events defined by their start and end times.

The data can be loaded with the function get_watershed_timeseries in hysom.utils.datasets

QT = pd.DataFrame(datasets.get_01191000_qt_data())
QT.set_index("datetime", inplace=True, drop=True)
events = datasets.get_01191000_events_data()

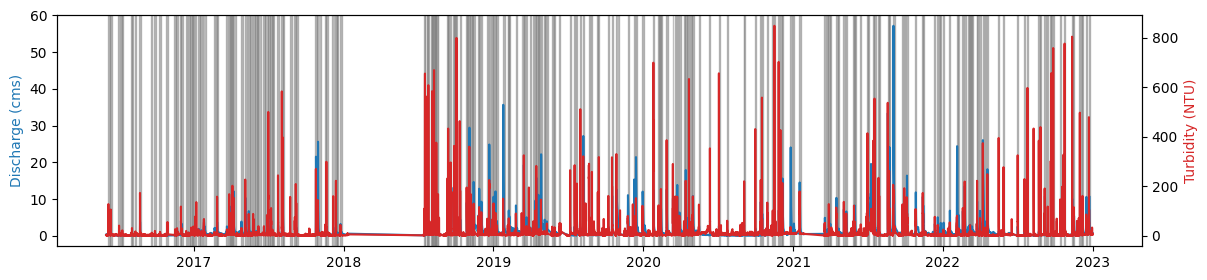

Visualize the data

The next plot shows the time series data and hydrologic events

fig, axQ = plt.subplots(figsize = (14,3))
axQ.plot(QT["Qcms"])
axT = axQ.twinx()
axT.plot(QT["turb"], color = 'tab:red')

axQ.set_ylabel("Discharge (cms)", color = "tab:blue")
axT.set_ylabel("Turbidity (NTU)", color = "tab:red")

for start, end in events:
    axQ.axvspan(xmin = start, xmax=end, color = 'grey', alpha = 0.5)

Extract hysteresis loops

First, let’s extract the time series for the first event:

event_start, event_end = events[0]
eventQT = QT.loc[event_start:event_end]
print(eventQT)

                               Qcms  turb
datetime
2016-06-04 08:15:00+00:00  0.213226   2.3
2016-06-04 08:30:00+00:00  0.213226   2.4
2016-06-04 08:45:00+00:00  0.213226   2.4
2016-06-04 09:00:00+00:00  0.213226   2.4
2016-06-04 09:15:00+00:00  0.213226   2.4
...                             ...   ...
2016-06-09 05:00:00+00:00  0.472891   3.1
2016-06-09 05:15:00+00:00  0.472891   3.2
2016-06-09 05:30:00+00:00  0.472891   3.4
2016-06-09 05:45:00+00:00  0.472891   3.3
2016-06-09 06:00:00+00:00  0.472891   3.3

[457 rows x 2 columns]

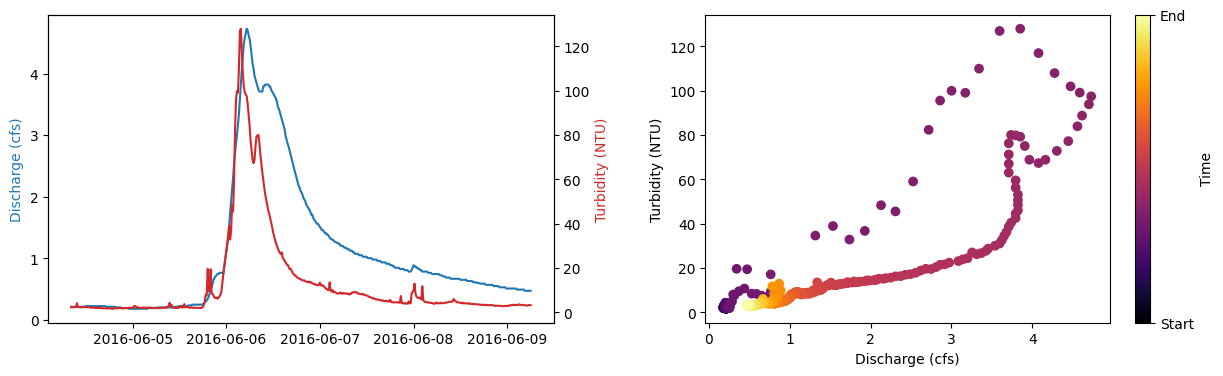

Sample plot of an event and its associated hysteresis loop

fig, (axQ, ax_loop) = plt.subplots(1,2, figsize = (15,4))

# Plot time series
axT = axQ.twinx()
axQ.plot(eventQT["Qcms"] ,'tab:blue')
axQ.set_ylabel("Discharge (cfs)", color = 'tab:blue')
axT.plot(eventQT["turb"], 'tab:red')
axT.set_ylabel("Turbidity (NTU)", color = 'tab:red')

# Plot loop
loop_mappable = ax_loop.scatter(eventQT["Qcms"], eventQT["turb"], cmap = "inferno", c = range(len(eventQT)))
ax_loop.set_xlabel("Discharge (cfs)")
ax_loop.set_ylabel("Turbidity (NTU)")

cb = plt.colorbar(loop_mappable)
cb.set_ticks(ticks = (0, len(eventQT)), labels = ("Start", "End") )
cb.set_label("Time")

plt.subplots_adjust(wspace=0.3)

Make a hysteresis loop compatible with HSOM

A hysteresis loop is basically an ordered sequence of \((Discharge,Concentration)\) data pairs. However, the length of this sequence varies with the event duration and data frequency. Also, the range of values in this sequence can vary drastically between events and watersheds. Since HSOM aims to characterize hysteresis loops based on the loop shape regardless of the event magnitude and duration, two normalization steps are required. First, events should be rescaled to a common scale. Second, loop sequences should have a constant length for a given SOM.

For example, trained data for the General T-Q SOM was scaled to a [0,1] interval using min-max normalization and loop sequences were resampled to 100 data points. Hence, every loop fed into this model must undergo the same preprocessing.

Let’s see what this preprocessing looks like for the previously plotted event. First, I’ll define a function to interpolate data in the \((Discharge, Concentration)\) plane (right panel in the figure above). The resulting (interpolated) data will be equally spaced in this plane

def loop_interpolation(CQtimeSeries: pd.DataFrame, seq_length) -> np.ndarray:
    """
    Interpolates a hysteresis loop in the C-Q plane to make it compatible with `HSOM`.
    The resulting loop will have `seq_length` evenly spaced data points.
    Note that the interpolation procedure ignores time information

    Parameters:
    - CQtimeSeries (pd.DataFrame): Pandas DataFrame with two columns. Typically: (discharge, concentration)
    - seq-length (int): number

    Returns:
    - np.ndarray: Numpy array of shape seq_length x 2 with the interpolated sequence

    """
    col1, col2 = CQtimeSeries.columns
    accum_dists = ( (CQtimeSeries[col1] - CQtimeSeries.shift(1)[col1])**2 + (CQtimeSeries[col2] - CQtimeSeries.shift(1)[col2])**2).apply(np.sqrt).cumsum()
    accum_dists.iloc[0] = 0.0
    path_length = accum_dists.max()

    interp_dists = np.linspace(0,path_length, seq_length)

    col1_interp = np.interp(interp_dists, accum_dists, CQtimeSeries[col1])
    col2_interp = np.interp(interp_dists, accum_dists, CQtimeSeries[col2])

    return np.stack((col1_interp, col2_interp), axis = 1)

Now, let’s apply min-max normalization and interpolate the sequence

original_event = eventQT
min_max_normalized_event = (
    (original_event - original_event.min()) / (original_event.max() - original_event.min())
    ).rename({"Qcms":"normQ", "turb":"normTurb"}, axis = "columns") # apply min-max normalization
interpolated_loop = loop_interpolation(CQtimeSeries = min_max_normalized_event, seq_length = 100) # interpolate loop in the (Q,C) plane

Note that interpolated_loop is a numpy array:

print(f"{type(interpolated_loop)} of shape {interpolated_loop.shape}")

<class 'numpy.ndarray'> of shape (100, 2)

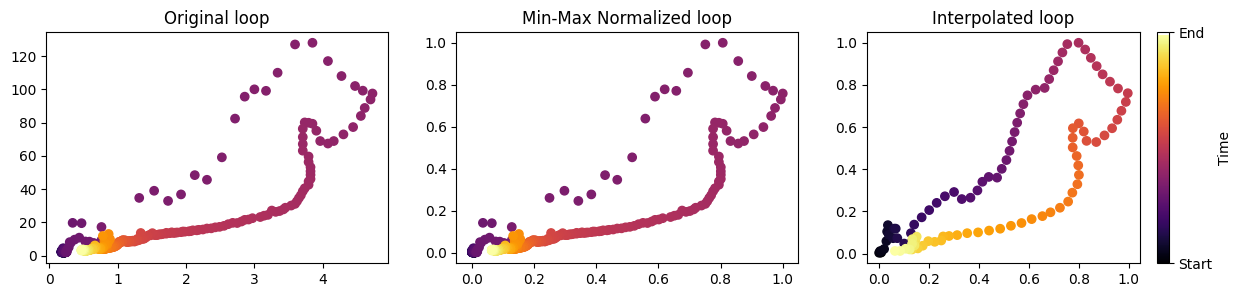

Let’s visualize these transformartions

fig, (ax1, ax2, ax3)  =plt.subplots(1,3, figsize  =(15,3))

ax1.scatter(original_event["Qcms"], original_event["turb"], cmap = "inferno", c = range(len(original_event)))
ax1.set_title("Original loop")
ax2.scatter(min_max_normalized_event["normQ"], min_max_normalized_event["normTurb"], cmap = "inferno", c = range(len(min_max_normalized_event)))
ax2.set_title("Min-Max Normalized loop")
sc = ax3.scatter(interpolated_loop[:,0], interpolated_loop[:,1], cmap = "inferno", c = range(len(interpolated_loop)))
ax3.set_title("Interpolated loop")

cb = plt.colorbar(sc)
cb.set_ticks(ticks = (0, len(interpolated_loop)), labels = ("Start", "End") )
cb.set_label("Time")

Preprocess the entire dataset

Our interpolated_loop is now compatible with HSOM and can be either part of a dataset for training an SOM or fed into a pretrained HSOM.

Let’s now apply the same preprocessing to the entire dataset:

loops = []
for event in events:
    start, end = event[0], event[1]
    qtevent = QT[start:end]
    qtnormalized = (qtevent - qtevent.min()) / (qtevent.max() - qtevent.min())
    loops.append(loop_interpolation(qtnormalized, 100))

Our list of loops is now compatible with HSOM.

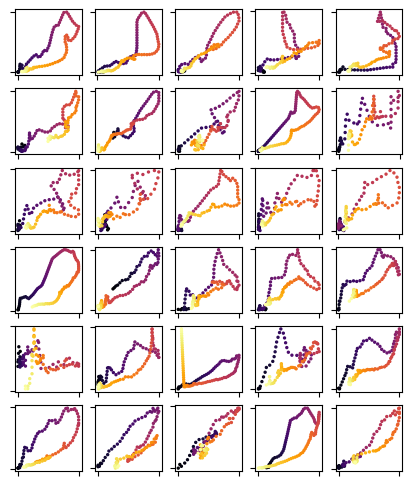

Let’s some loops

fig, axs = plt.subplots(6,5, figsize = (5,6))

for loop, ax in zip(loops, axs.flatten()):
    ax.scatter(loop[:,0], loop[:,1], cmap = "inferno", c = range(len(loop)), s = 2)
    ax.tick_params(labelbottom = False, labelleft = False)

Feed preprocessed loops into a pre-trained SOM (General TQ-SOM)

Finally, let’s classify these loops using the General TQ-SOM.
Additional details on training an SOM can be found here.
For further details on visualization functions see this
For further details on the analysis using the General T-Q SOM, see this

tqsom = get_generalTQSOM() # Load pre-trained SOM

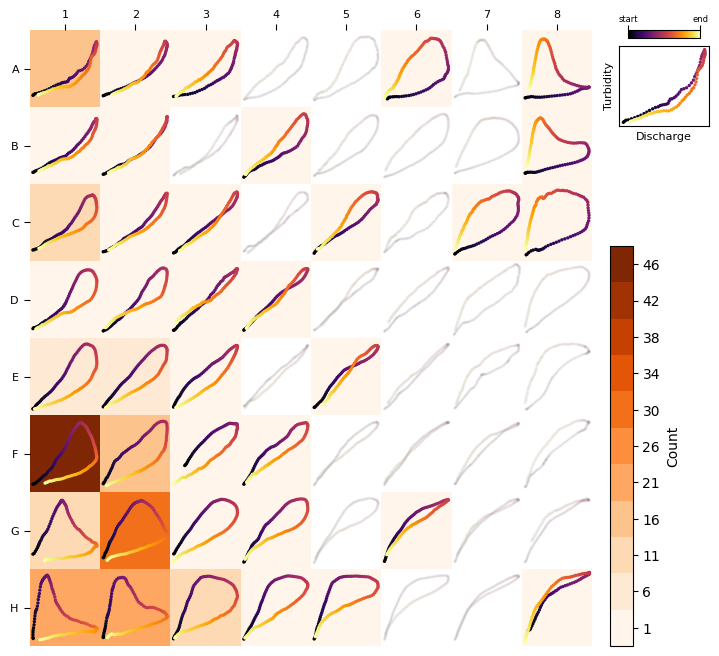

heatmap_frequency(tqsom, loops) # Plot the frequency distribution of loop types

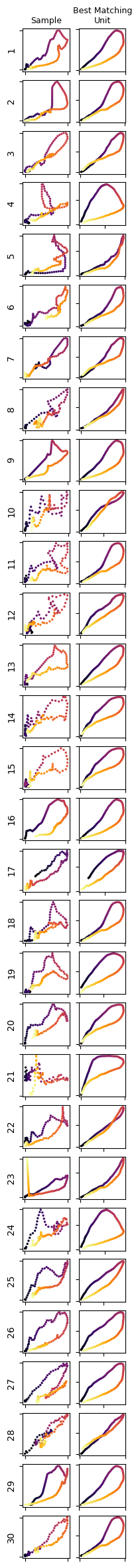

Finally let’s compare some of the samples with their Best-Matching unit

nloops = 30
fig, axs = plt.subplots(nloops, 2, figsize = (2, nloops))

for row, loop in enumerate(loops[:nloops]):
    bmu = tqsom.get_BMU(loop)
    prototype = tqsom.get_prototypes()[bmu]

    ax1, ax2 = axs[row]
    ax1.scatter(loop[:,0], loop[:,1], cmap = "inferno", c = range(len(loop)), s = 2)
    ax1.tick_params(labelbottom = False, labelleft = False)
    ax1.set_ylabel(row + 1)

    ax2.scatter(prototype[:,0], prototype[:,1], cmap = "inferno", c = range(len(loop)), s = 2)
    ax2.tick_params(labelbottom = False, labelleft = False)


axs[0,0].set_title("Sample", size = 9)
axs[0,1].set_title("Best Matching\nUnit", size = 9)

Text(0.5, 1.0, 'Best Matching\nUnit')
